BCRB/BRBC Series Crossed Roller Bearings

BCRB/BRBC Series Crossed Roller Bearings

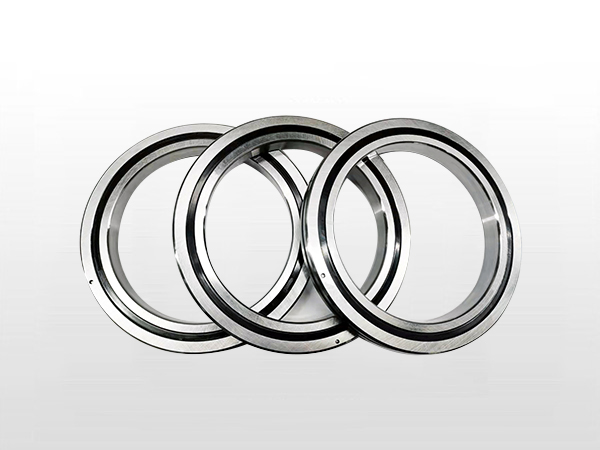

The structural feature of BCRB/BRBC series crossed roller bearings is that the outer ring is split type, the inner ring is an integrated design, and there is no cage, but a full complement of roller design. This structure enables the bearing to provide higher rotation accuracy, and is especially suitable for parts that require higher rotation accuracy of the inner ring.

Email: byc@lybybearings.com

Mobile: +86 17395972198

REQUEST FOR QUOTE >

Product Parameter Product Description

BCRB/BRBC series cross roller bearing parameters

Shaf Diameter(mm)	Model Number		Main Dimensions(mm)				Mounting Dimensions(mm)		CRBC		CRB		Weight
	With Cage	Full Complement	Inner Ring	Outer Diameter	Width	Chamfer	ds	Dh	Dynamic Load Rating	Static Load Rating	Dynamic Load Rating	Static Load Rating	Kg
	With Cage	Full Complement	d	D	B	r(min)	ds	Dh	C(KN)	Co(KN)	C(KN)	Co(KN)
40	BRBC4010	BCRB4010	40	65	10	0.3	44	54	4.28	5.14	5.98	8.04	0.15
50	BRBC 5013	BCRB5013	50	80	13	0.6	55	71	10.7	12.6	14.2	18.4	0.29
60	BRBC6013	BCRB6013	60	90	13	0.6	64	81	11.6	14.6	15.4	21.5	0.33
70	BRBC7013	BCRB7013	70	100	13	0.6	75	91	12.3	16.7	17	25.5	0.38
80	BRBC8016	BCRB8016	80	120	16	0.6	86	107	18.2	25.5	24.3	37.5	0.74
90	BRBC9016	BCRB9016	90	130	16	1	98	118	19.4	28.6	25.9	42.1	0.81
100	BRBC10020	BCRB10020	100	150	20	1	108	134	31.5	45.1	39.4	61.1	1.45
110	BRBC11020	BCRB11020	110	160	20	1	118	144	33.5	50.7	41.2	66.7	1.56
120	BRBC 12025	BCRB12025	120	180	25	1.5	132	164	47.7	70.5	59.9	95.4	2.62
130	BRBC13025	BCRB13025	130	190	25	1.5	140	172	49.2	74.8	61	99.8	2.82
140	BRBC14025	BCRB14025	140	200	25	1.5	151	183	50.7	79.2	64.1	108	2.96
150	BRBC15025	BCRB15025	150	210	25	1.5	160	192	53.8	87.7	65	113	3.16
150	BRBC15030	BCRB15030	150	230	30	1.5	166	202	69.2	108	85.9	144	5.3
200	BRBC20025	BCRB20025	200	260	25	2	208	239	60.2	110	75.3	148	4
	BRBC20030	BCRB20030	200	280	30	2	218	262	108	178	133	234	6.7
	BRBC20035	BCRB20035	200	295	35	2	221	274	137	215	168	282	9.58
250	BRBC25025	BCRB25025	250	310	25	2.5	259	290	67.2	136	83.9	183	4.97
	BRBC 25030	BCRB25030	250	330	30	2.5	265	310	116	208	146	283	8.1
	BRBC 25040	BCRB25040	250	355	40	2.5	271	330	179	299	215	382	14.8
300	BRBC 30025	BCRB30025	300	360	25	2.5	310	341	73.8	162	91.9	217	5.88
	BRBC 30035	BCRB30035	300	395	35	2.5	318	372	163	299	205	408	13.4
	BRBC 30040	BCRB30040	300	405	40	2.5	321	381	194	351	235	451	17.2
400	BRBC 40035	BCRB40035	400	480	35	2.5	414	457	133	300	165	400	14.5
	BRBC 40040	BCRB40040	400	510	40	2.5	423	483	222	455	270	590	23.5
	BRBC 40070	BCRB40070	400	580	70	2.5	430	532	470	811	576	1060	72.4
500	BRBC 50040	BCRB50040	500	600	40	2.5	517	573	211	497	259	648	26
	BRBC 50050	BCRB50050	500	625	50	2.5	531	592	247	561	306	747	41.7
	BRBC50070	BCRB50070	500	680	70	2.5	530	633	536	1020	653	1330	86.1
600	BRBC60040	BCRB60040	600	700	40	3	621	676	231	581	287	774	30.6
	BRBC60070	BCRB60070	600	780	70	3	630	734	591	1230	700	1540	102
	BRBC600120	BCRB600120	600	870	120	3	643	817	1250	2210	1490	2800	274
700	BRBC 70045	BCRB70045	700	815	45	3	730	785	250	681	301	917	46.5
	BRBC 70070	BCRB70070	700	880	70	3	731	834	630	1390	766	1810	115
	BRBC700150	BCRB700150	700	1020	150	3	751	953	1660	3010	1980	3820	478
800	BRBC 80070	BCRB80070	800	950	70	4	831	907	417	1090	513	1440	109
800	BRBC800100	BCRB800100	800	1030	100	4	840	972	936	2040	1140	2640	247

Dimensional Tolerance Standards for Crossed Roller Bearings

Dimensional Tolerance of the Bearing Inner Diameter
lnner diameter (d)		Tolerance of dm
(mm)		P0		P6		P5		P4/P2
Above	less	Upper	Lower	Upper	Lower	Upper	Lower	Upper	Lower
18	30	0	-10	0	-8	0	-6	0	-5
30	50	0	-12	0	-10	0	-8	0	-6
50	80	0	-15	0	-12	0	-9	0	-7
80	120	0	-20	0	-15	0	-10	0	-8
120	150	0	-25	0	-18	0	-13	0	10
150	180	0	-25	0	-18	0	-13	0	-10
180	250	0	-30	0	-22	0	-15	0	-12
250	315	0	-35	0	-25	0	-18	0	-15
315	400	0	-40	0	-30	0	-23	0	18
400	500	0	-45	0	-35	0	-25	0	-20
500	630	0	50	0	-40	0	-30	0	25
630	800	0	-75	0	-45	0	-35	0	-30
800	1000	0	-100	0	-50	0	-40	0	-35
1000	1250	0	-125	0	-60	0	-50	0	-45

Dimensional Tolerance of the Bearing outer Diameter
lnner diameter(D)		Tolerance of dm
(mm)		P0		P6		P5		P4/P2
Above	less	Upper	Lower	Upper	Lower	Upper	Lower	Upper	Lower
18	30	0	-11	0	-9	0	-7	0	-6
30	50	0	-13	0	-11	0	-9	0	-7
50	80	0	-15	0	-13	0	-10	0	-8
80	120	0	-18	0	-15	0	-11	0	-9
120	150	0	-25	0	-18	0	-13	0	-10
150	180	0	-30	0	-20	0	-15	0	-11
180	250	0	-35	0	-25	0	-18	0	-13
250	315	0	-40	0	-28	0	-20	0	-15
315	400	0	-45	0	-33	0	-23	0	18
400	500	0	-50	0	-38	0	-28	0	-20
500	630	0	-75	0	-45	0	-35	0	25
630	800	0	-100	0	-50	0	-40	0	-30
800	1000	0	-125	0	-60	0	-50	0	-35
1000	1250	0	-125	0	-70	0	-60	0	-45

Unit:μm

Note

1) The standard inner and outer diameter dimensional accuracy of BRA, BRB, BRE and BRU is grade O, if you need higher precision than grade 0, please consult BYC Boying Bearing.

2) dm represents the arithmetic mean of the maximum diameter and the minimum diameter obtained by two-point measurement of the inner diameter of the bearing Dm represents the arithmetic mean of the maximum diameter and the minimum diameter obtained by two-point measurement of the outer diameter of the bearing.

3) In the table, the precision grades of the inner diameter or outer diameter of the bearings are not indicated by numerical values, and the highest numerical values are also applicable to lower precision grades.

Specifically, the outer ring of BCRB/BRBC series crossed roller bearings is divided into two or more parts, this design facilitates installation and disassembly, and can be adapted to different installation scenarios. The inner ring adopts a one-piece design to ensure the rigidity and stability of the inner ring.

Compared with traditional crossed roller bearings, BCRB/BRBC series bearings are designed with full complement rollers without cages, which makes the contact between the rollers closer and the load capacity is higher. At the same time, since there is no interference from the cage, the inner ring rotates with less friction and deformation, thus providing higher rotation accuracy.

The purpose of preloading BCRB/BRBC series cross roller bearings

1. Improve bearing rotation accuracy

After the BCRB and BRBC series crossed roller bearings are preloaded, the internal clearance can be eliminated, the preload can be evenly distributed on each rolling element, and the ring is supported from multiple directions, thereby improving the rotation accuracy of the bearing and positioning the shaft correctly in axial and radial positions.

2. Improve bearing rigidity

The contact between the raceway and the bearing in the rolling element is an elastic contact, and the rolling element has the elasticity similar to a spring. For bearings with clearance, generally only a few rolling elements are supporting the load received. After the bearing is preloaded, it will have elastic support in all directions, and there is a certain amount of preload, so there are more rolling elements that can bear the load. , thereby increasing the stiffness of the bearing.

3. Improve bearing life

After the preloaded BCRB and BRBC series crossed roller bearings, the number of rolling elements bearing the load increases, and at the same time, because the load received is evenly distributed to each rolling element, the load on each rolling element will be reduced. , thereby increasing the service life of the bearing.

4. Improve bearing damping and reduce noise

After preloading, a stable oil film can be established between the bearing rolling elements and the raceway, which improves the damping between the rolling elements and the raceways, improves the elasticity of the bearing support structure, and makes the bearing run with less noise.

5. Improve the dynamic performance of the bearing

For high-speed rotating bearings, if it is necessary to prevent the gyroscopic rotation of the steel ball, prevent the revolution slip of the steel ball, and control the spin-slide of the steel ball, a certain preload is necessary.

6. Make up for the wear of the bearing during operation

When the bearing is running, the wear caused by long-term operation will increase the clearance of the bearing. At this time, we can make up for it by preloading.
