What are the characteristics of rotary table bearing?

Rotary table bearings, also known as slewing bearings or turntable bearings, are critical components used in various applications that require smooth rotation, axial and radial load support, and precise positioning. These bearings feature several key features to facilitate their functionality。

Rotary table bearing characteristics

Large Diameter: Rotary table bearings typically have large diameters to support heavy loads and provide stability during rotation. The diameter can range from several inches to several meters, depending on the application requirements.

Compact Design: Despite their large size, rotary table bearings are designed to be compact to minimize space requirements and installation complexities.

High Load Capacity: These bearings are engineered to withstand significant axial, radial, and even moment loads while maintaining smooth rotation. They are capable of supporting static and dynamic loads encountered during operation.

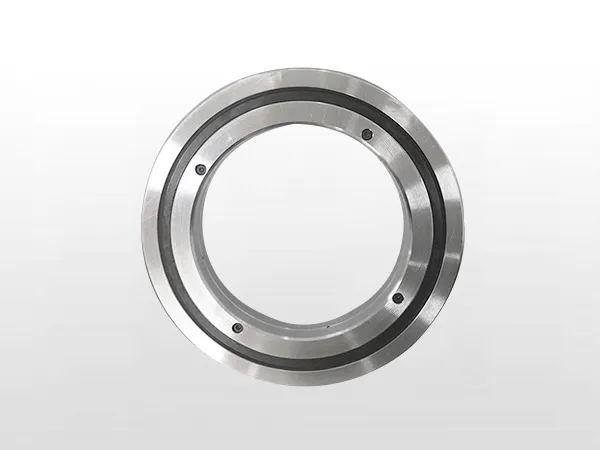

Rotary table bearings

Dual Axial and Radial Support: Rotary table bearings provide both axial and radial support, allowing for smooth rotation and axial movement while accommodating radial loads.

Gear Teeth or Gear Ring: Many rotary table bearings feature gear teeth or a gear ring integrated into the outer diameter. These gears facilitate the transmission of torque, enabling the bearing to function as a rotary drive or positioning system.

Raceway Design: The raceways in rotary table bearings are specially designed to minimize friction, wear, and noise while maximizing load-carrying capacity and rotational accuracy.

Sealing and Lubrication: Seals and lubrication systems are incorporated into rotary table bearings to protect against contamination, prevent lubricant leakage, and ensure smooth operation over extended periods.

Rotary table bearings

Corrosion Resistance: Depending on the application environment, rotary table bearings may be constructed from materials or coatings that offer corrosion resistance, enhancing durability and longevity.

Precision Machining: Rotary table bearings are precision-engineered and machined to tight tolerances to ensure smooth rotation, accurate positioning, and minimal backlash.

Mounting Holes and Interfaces: Mounting holes and interfaces are provided to facilitate easy installation and integration with other components, such as drive systems, motors, and structural supports.

Modularity: In some designs, rotary table bearings are modular, allowing for easier maintenance and replacement of individual components, such as race rings or gear segments.

Rotary table bearings

Application-Specific Variants: Manufacturers offer rotary table bearings in various configurations and designs tailored to specific applications, such as industrial machinery, construction equipment, cranes, wind turbines, and aerospace systems.

Overall, rotary table bearings play a crucial role in enabling smooth and precise rotation in a wide range of applications, thanks to their robust construction, load-bearing capacity, and engineering features.
